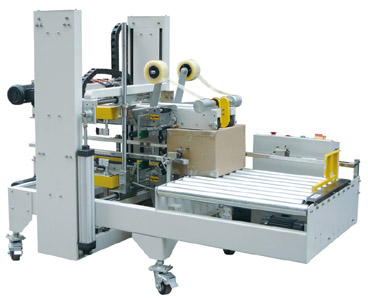

The CTCS50F Carton Corner Sealer seal carton corn easily and economically using tape on both four corner of the carton. It is easily adjustable for both height and width for different sized cartons and is suitable for single use carton packing as well as in a production line. It works with tape width of 48mm, 60mm, 75mm. Maximum Carton dimensions 500mm(W) x 500mm(H). Automatically adjust the height and the width for different size of cartons;
Features:
Designed for easy operation, economic, safety, low breakdown rate
Automatically adjust the height and the width for different size of cartons
Automatic 90° cartons turning and pushing system for 4 corner seal
Seal elegant, fast, save labor, high efficiency
Cutter Safety system to prevent hands form stabbed by the cutter
Single use carton packing as well as in a production line
|
Model |
CTCS50F |
|
Conveyor speed |
300-360cartons/hour |
|
Max. Packing size |
L500×W500×H500mm |
|
Min. Packing size |
L320×W200×H180mm |
|
Power supply |
110V, 220-240V, 50/60Hz, 1Phase，400W |
|
Air Source |
6KG/cm2, 450NL/min |
|
Adhesive tape width |
48mm, 60mm, 75mm |
|
Machine dimension |
L2100×W1200×H1580mm |
|
Machine weight |
450kg |
