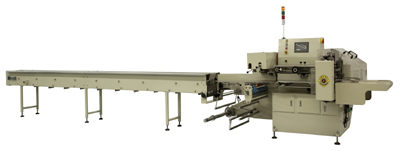

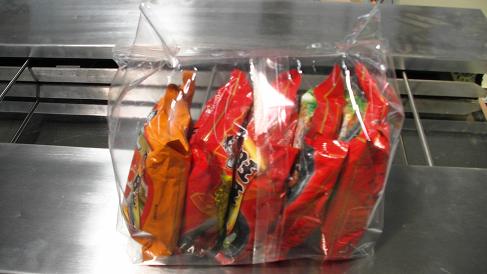

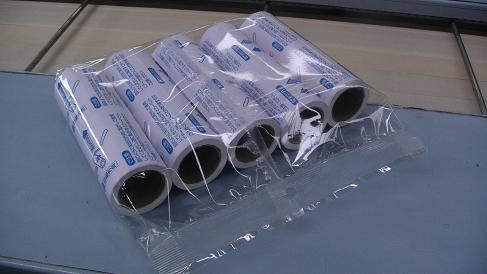

This machine adopts film bottom sending to automatically wrap, form and seal, normally suitable for big pouch size. Suitable for assembly packaging of the products of several blocks such as sausage,fresh noodles,ice pops,several blocks of instant noodle, several bags of milk, fans, rice vermicelli,etc.
|
Model |
FPD 720 |
FPD 900 |
|
|
Film Width (mm) |
<720 |
<900 |
|
|
Size of Package |
|
|
L: Length(mm) |
L:180-550 |
L:180-560 |
|
|
B: Width(mm) |
B:50-250 |
B:60-350 |
|
|
H: Height(mm) |
H:40-100 |
H<50-150 |
|
|
Packing Speed ( Bag/min ) |
25-80 |
25-80 |
|
|
|
Dimension (mm) |
5000×1240×1700 |
5000×1350×1750 |
|
|
Film Material |
Compound Film of heat seal :OPP/PE,PET/PE,AL/PE, etc |
|
|
Weight (kg) |
1300 |
1400 |
|
|
Motor Power |
Host motor1KW one set；film motor 0.75KW |
|
|
Heating Power |
450W，2sets, 400W，4 sets |
|
|
Main Power |
Single phase 220V，60HZ |
|
|
Total Power |
4.5KW |
|
